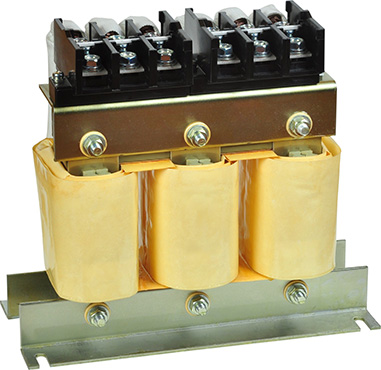

Three-phase Reactor

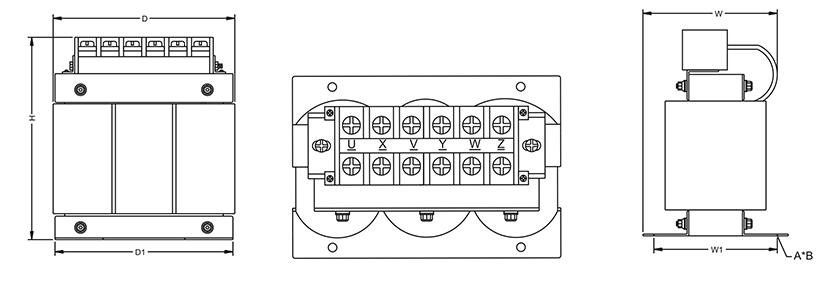

Dimension&Specification(unit:mm)
| Model | D MAX |
D1 ±1.0 |
W MAX |
W1 ±1.0 |
H MAX |
A*B | Rated Capacity |
|---|---|---|---|---|---|---|---|
| ACR-1.5K-000 | 148.0 | 95.0 | 85.0 | 55.0 | 168.0 | 6.0*15.0 | 1.5KW |
| ACR-2.2K-000 | 148.0 | 95.0 | 85.0 | 55.0 | 168.0 | 6.0*15.0 | 2.2KW |
| ACR-3.7K-000 | 148.0 | 95.0 | 105.0 | 80.0 | 168.0 | 6.0*15.0 | 3.7KW |
| ACR-5.5K-000 | 188.0 | 120.0 | 160.0 | 90.0 | 220.0 | 8.5*20.0 | 5.5KW |
| ACR-7.5K-000 | 188.0 | 120.0 | 160.0 | 90.0 | 220.0 | 8.5*20.0 | 7.5KW |
| ACR-11K-000 | 188.0 | 120.0 | 180.0 | 95.0 | 220.0 | 8.5*20.0 | 11KW |
| ACR-15K-000 | 188.0 | 120.0 | 180.0 | 95.0 | 220.0 | 8.5*20.0 | 15KW |
| ACR-18.5K-000 | 188.0 | 120.0 | 180.0 | 100.0 | 250.0 | 8.5*20.0 | 18.5KW |
| ACR-22K-000 | 188.0 | 120.0 | 180.0 | 100.0 | 250.0 | 8.5*20.0 | 22KW |
| ACR-30K-000 | 240.0 | 182.0 | 220.0 | 115.0 | 280.0 | 10.0*18.0 | 30KW |
| ACR-37K-000 | 240.0 | 182.0 | 220.0 | 115.0 | 280.0 | 10.0*18.0 | 37KW |
| ACR-45K-000 | 240.0 | 182.0 | 220.0 | 115.0 | 280.0 | 10.0*18.0 | 45KW |
The above mounting specifications and measurements are for reference only. We can design and manufacture products to meet your needs.
